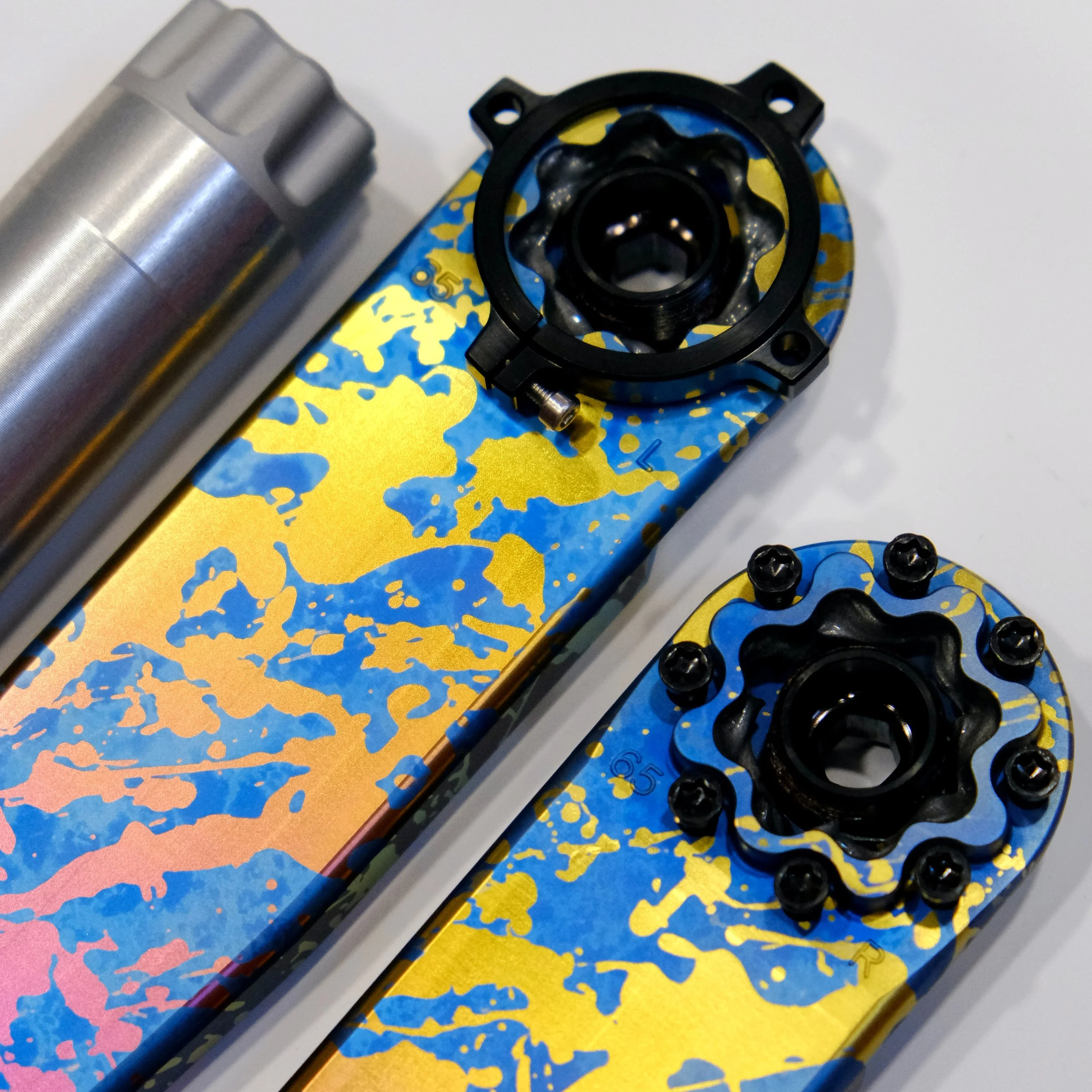

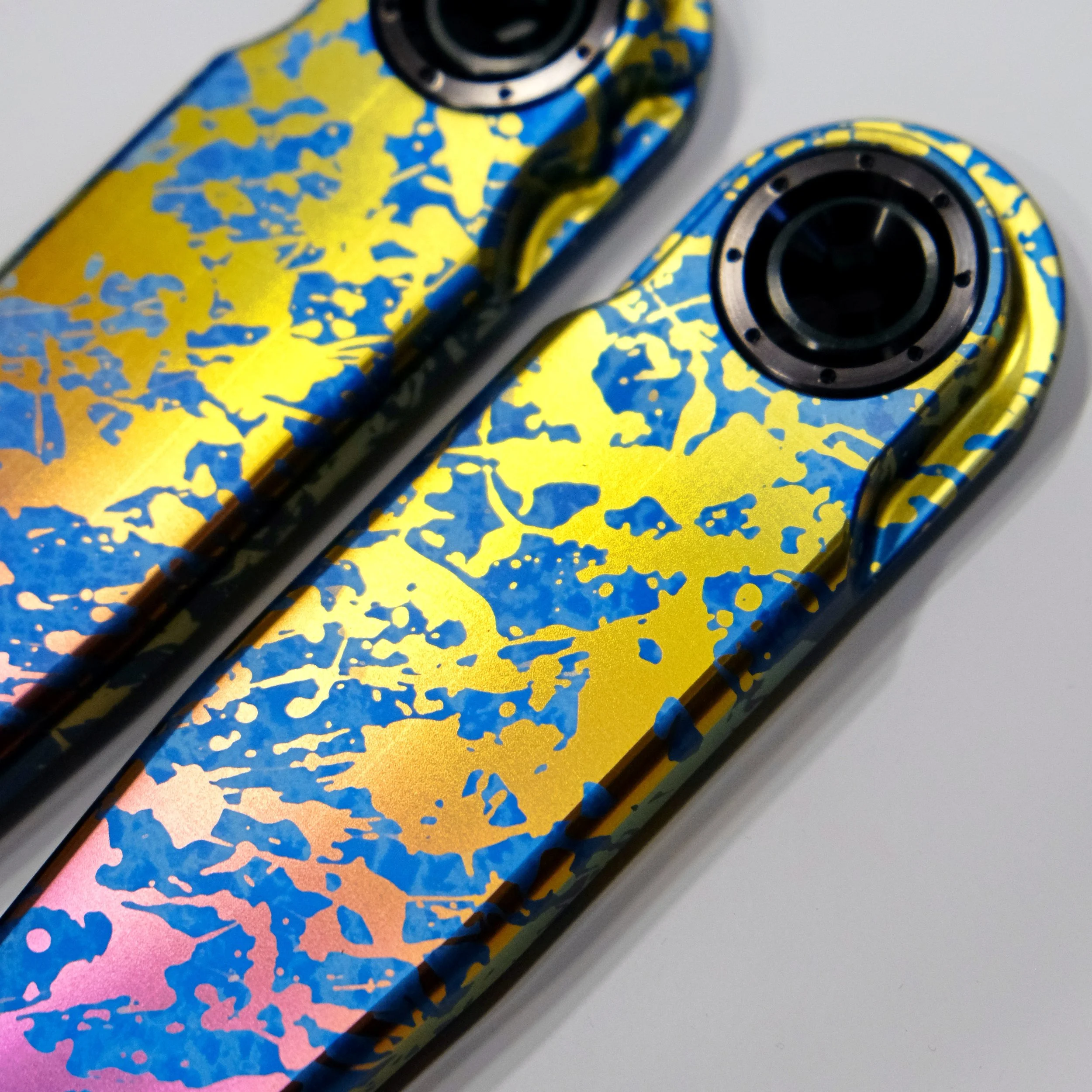

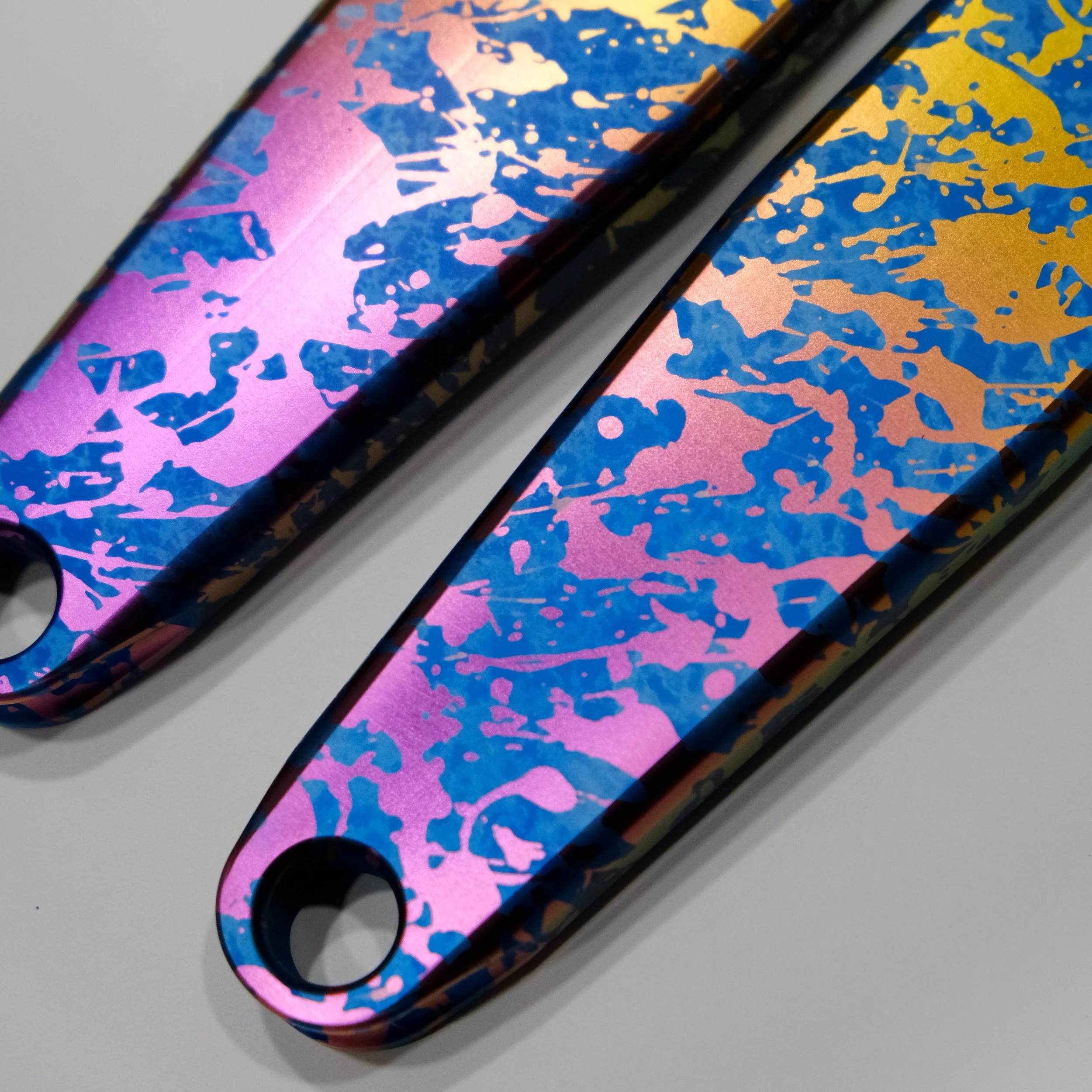

Introducing the 5DEV Road, Gravel, and XC Mountain titanium crank. CNC Machined and Laser Welded in San Diego, California, and anodized in the Agave workshop. The Road/Gravel/XC cranks utilize a 3-piece spindle, and can be used on a variety of applications from road bikes to trail bikes to fat bikes.

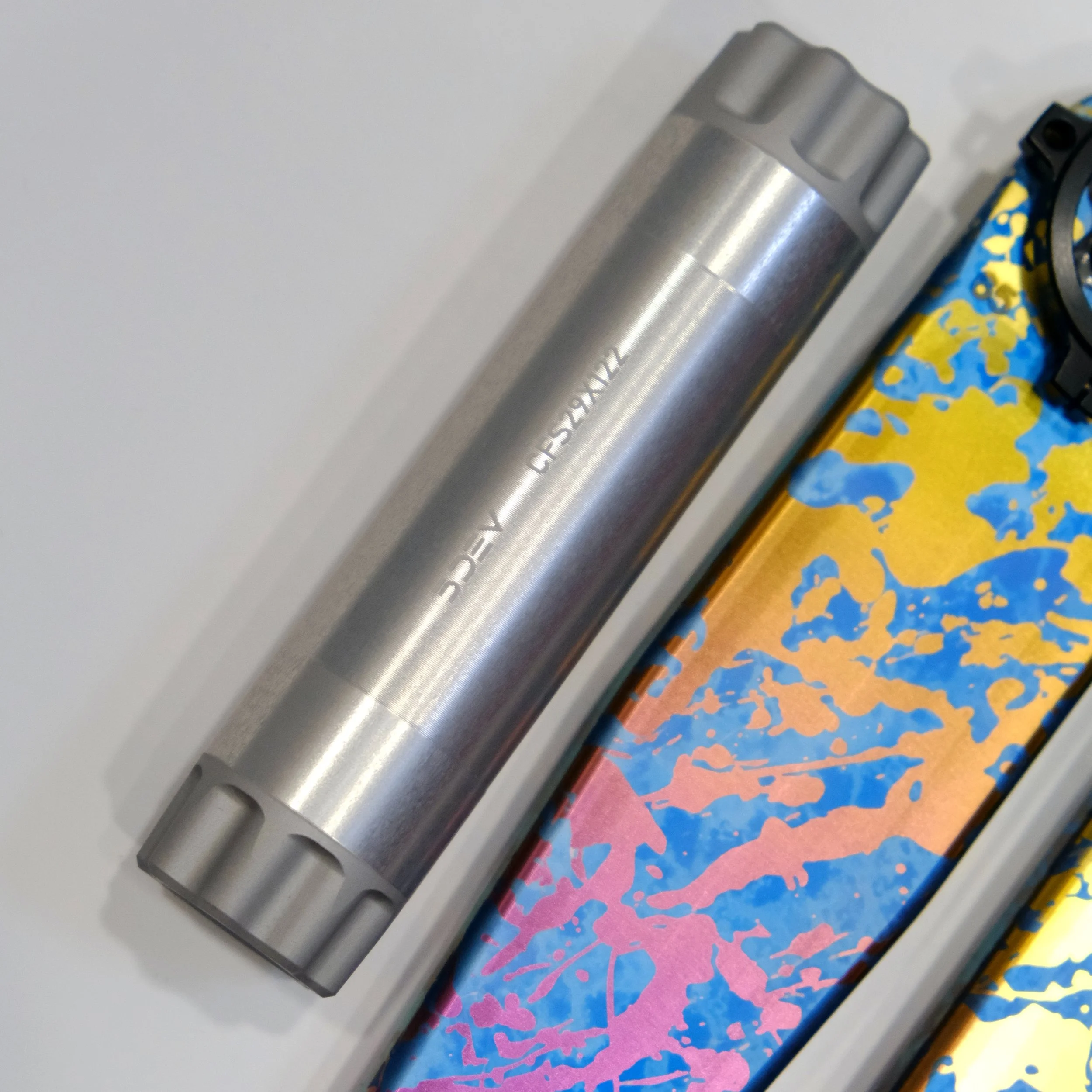

SPINDLE SELECTION: All 5DEV cranks are compatible with any 5DEV spindles. Cranks are stocked with a standard option of 29×122mm (road/gravel) spindles, as this is the most common selection. We keep 29x130mm (Boost) and 29x136mm (55mm chainline) spindles on hand and are happy to swap before shipment. If this is desired, please message after purchase and we’ll include the desired spindle!

Tech Features:

Hollow Laser Welded Titanium: Light, Strong and Stiff with Vibration Absorption Design to reduce rider fatigue.

Weight: 446g at 170mm with Road Spindle

3 Piece Spindle Interface: Allows you to run 68, 73 or DUB Wide Widths for Road, Gravel and XC BB’s. Swap frame to frame with ease. These will never become obsolete! Fatbike spindle also available, complete options can be found here.

Q Factor: 152mm Road / 160mm Road Wide / 166 XC with 55mm Chainline

I Factor: 126mm Road / 134 Road Wide / 140mm XC (I Factor is how your determine what spindle you need to clear your chainstays on your frame)

8 Bolt Chainring Pattern: Integrate our Aero or Classic Rings along with SRAM Rings or Quarq Power Meters. 1X or 2X compatible.

Power Meter: All Quarq 8 Bolt Spiders

Low Profile Tip:  Reduced rock strikes on technical trails.

Diamond Coated Titanium Hardware: to prevent corrosion, reduce weight and improve function.

Sizes: 175 / 170 / 165 / 155
